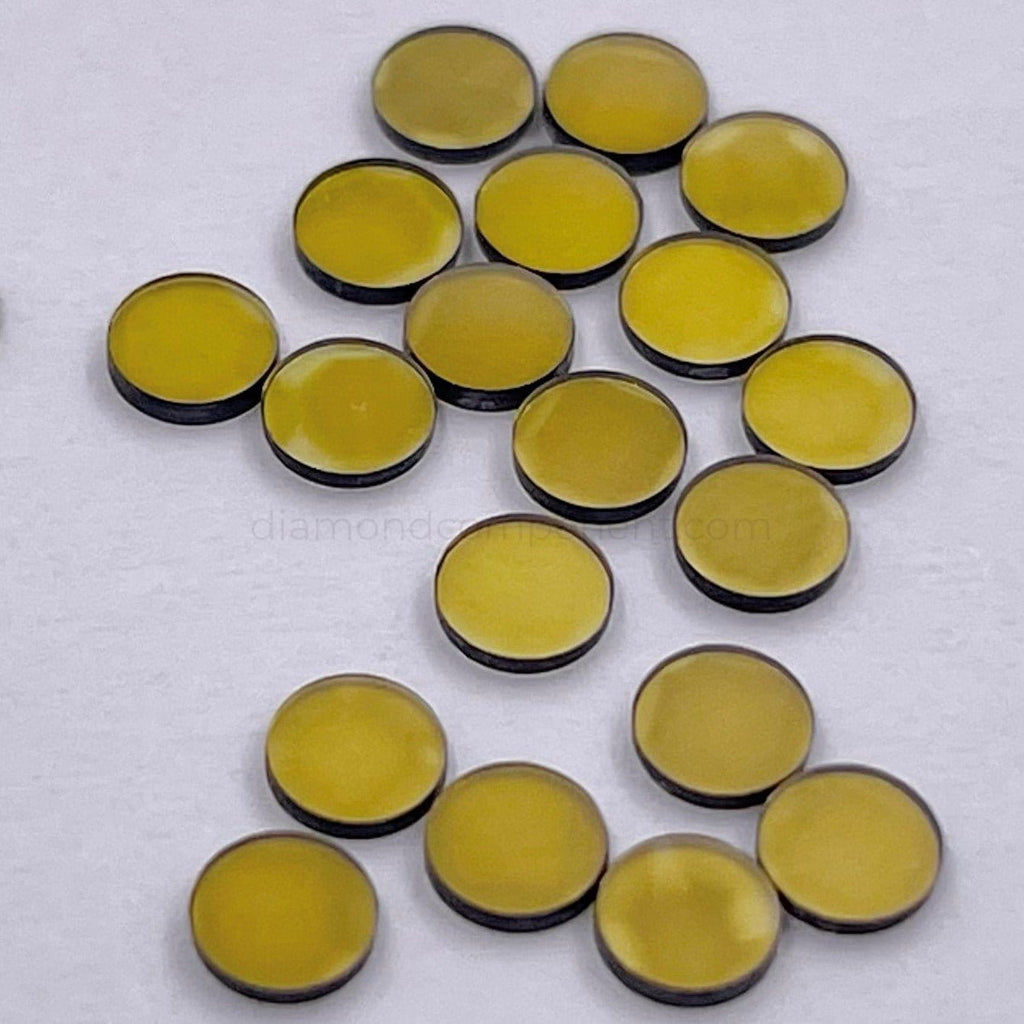

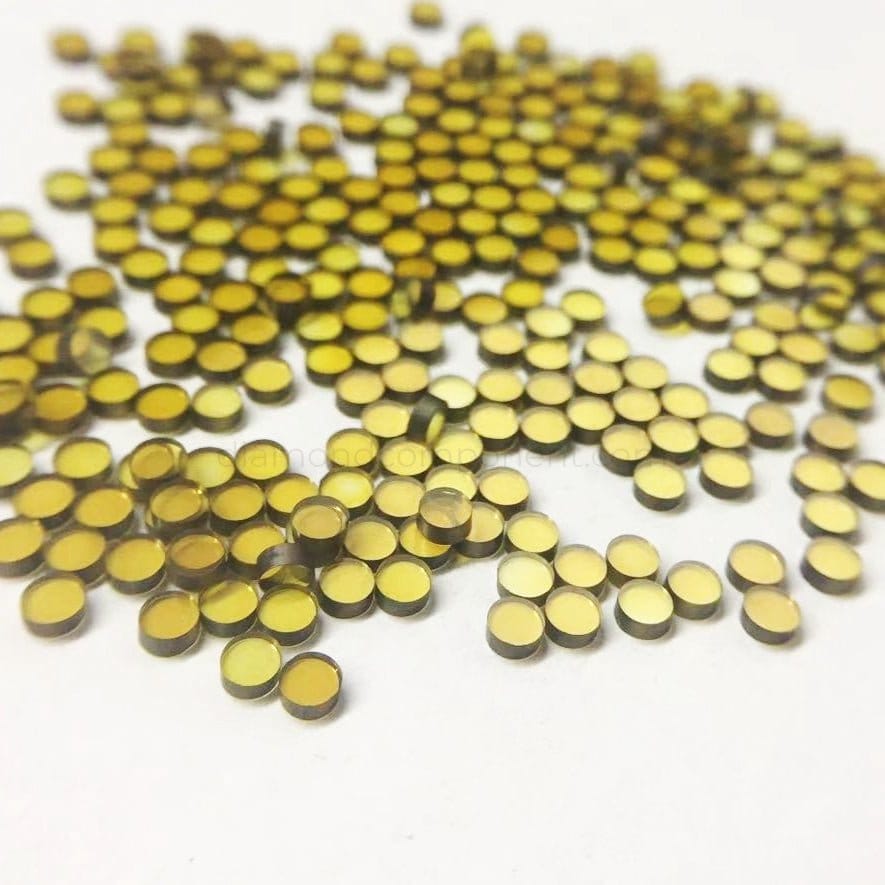

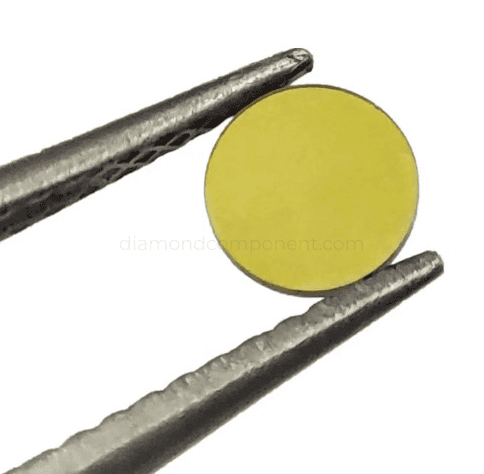

Round MCD Diamond Blanks
Round monocrystalline diamond (MCD) blanks manufactured from high-quality HPHT synthetic single crystal diamond with controlled <100> crystal orientation.
These diamond blanks are widely used for manufacturing precision cutting tools, diamond turning tools, dressing tools, engraving tools and custom diamond inserts. Compared with polycrystalline diamond (PCD), MCD offers a continuous single-crystal structure that enables extremely sharp cutting edges and excellent surface finish performance.
Standard sizes are available from stock, and custom dimensions can be manufactured according to drawings or tool design requirements.
Specifications
| Item | Description |
|---|---|
| Material | HPHT Monocrystalline Diamond (MCD) |
| Crystal Orientation | <100> |
| Shape | Round Blank |
| Diameter Range | 1–8 mm |
| Thickness Range | 0.1–2.0 mm （mostly 0.1mm-1.6mm） |
| Surface Finish | Double Polished |
| Edge Condition | Laser Cut |
| Custom Manufacturing | Different shape, size, thickness are available |
| Supply Mode | Standard Sizes and Custom Production |
Why Use MCD Diamond?
Monocrystalline diamond contains no grain boundaries, allowing the cutting edge to be sharpened to an extremely fine geometry.
Compared with polycrystalline diamond materials, MCD is often selected when surface finish quality, edge sharpness and dimensional accuracy are more important than impact resistance.
| Material | Typical Advantage |
|---|---|
| MCD (Monocrystalline Diamond) | Ultra-sharp cutting edge and superior surface finish |
| PCD (Polycrystalline Diamond) | Higher toughness and wear resistance for interrupted cutting |
For ultra-precision machining applications, MCD remains one of the preferred tool materials.
Standard Sizes
| Diameter × Thickness | Custom Note |
|---|---|
| Φ1.0 × 0.5 / 1.0 / 1.5 mm |
Other diameters and thicknesses available upon request. Please send your drawing or specifications for quotation. |
| Φ1.2 × 0.5 / 1.0 / 1.5 mm | |
| Φ1.5 × 0.5 / 1.0 / 1.5 mm | |
| Φ1.8 × 0.5 / 1.0 / 1.5 mm | |
| Φ2.0 × 0.5 / 1.0 / 1.5 mm | |
| Φ2.5 × 0.5 / 1.0 / 1.5 mm | |
| Φ3.0 × 0.5 / 1.0 / 1.5 mm | |
| Φ3.5 × 0.5 / 1.0 / 1.5 mm | |
| Φ4.0 × 0.5 / 1.0 / 1.5 mm | |
| Φ5.0 × 0.5 / 1.0 / 1.5 mm |
Typical Applications
Round MCD blanks are commonly used for manufacturing:
Single crystal diamond cutting tools
Diamond turning tools
Ultra-precision inserts
Diamond dressing tools
Fly-cutting tools
Engraving and carving tools
Optical machining tools
Custom diamond tool components
Suitable Workpiece Materials
MCD cutting tools are typically used for machining:
Aluminum and aluminum alloys
Copper and copper alloys
Brass and bronze
Gold, silver and precious metals
Optical plastics and acrylic materials
Graphite
Composite materials
Selected ceramic materials
Application suitability depends on tool geometry, cutting conditions and machining process.
Crystal Orientation
Standard products are supplied with <100> crystal orientation, commonly used for precision cutting and diamond tool manufacturing.
For applications such as wire drawing dies or other specialized tooling, alternative orientations may be available upon request.
Please specify orientation requirements during inquiry if crystallographic direction is important to tool performance.
Custom Manufacturing
Custom services include:
Diameter and thickness modification
Special geometries
Orientation selection
Tolerance control
Precision polishing
Drawing-based manufacturing
Prototype and batch production
Ordering Information
For quotation, please provide diameter, thickness, quantity and intended application.
Drawings, tool designs or photographs can help determine the most suitable material specification and manufacturing process.
