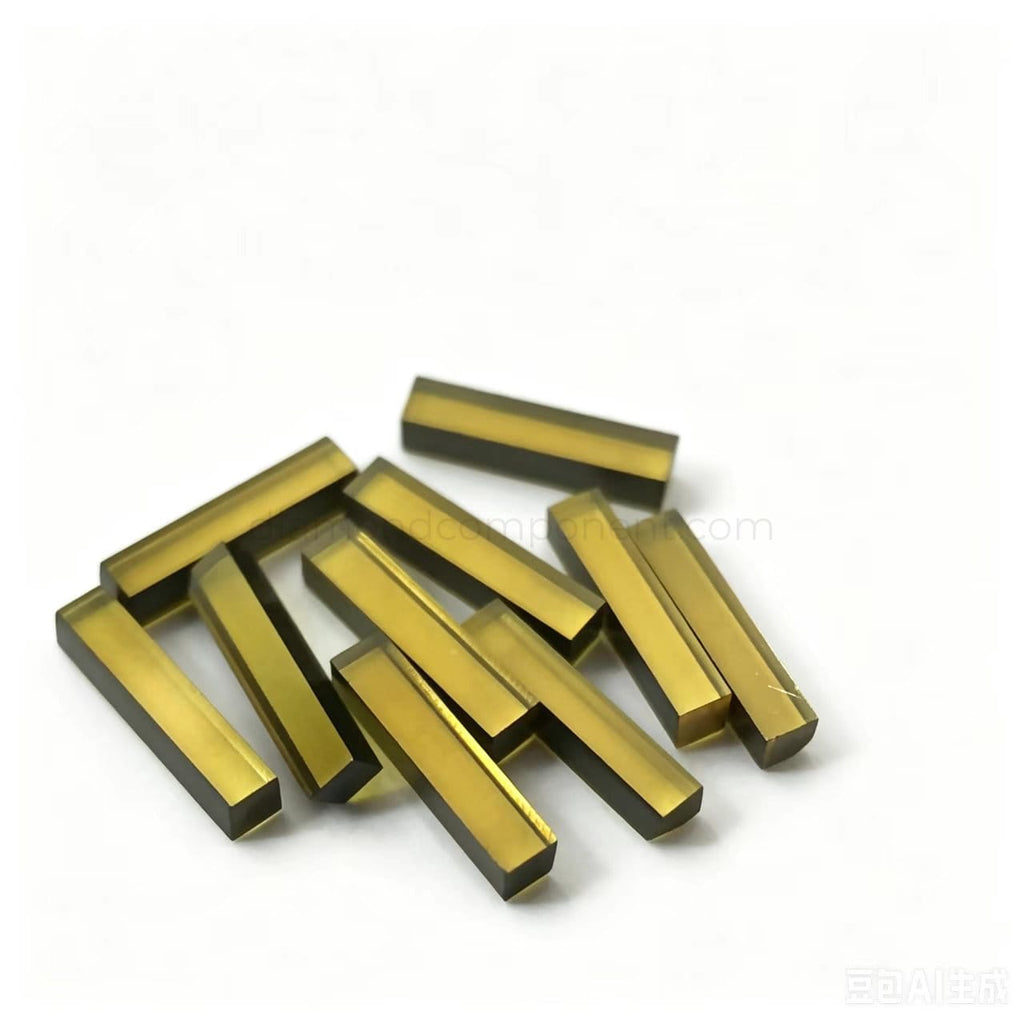

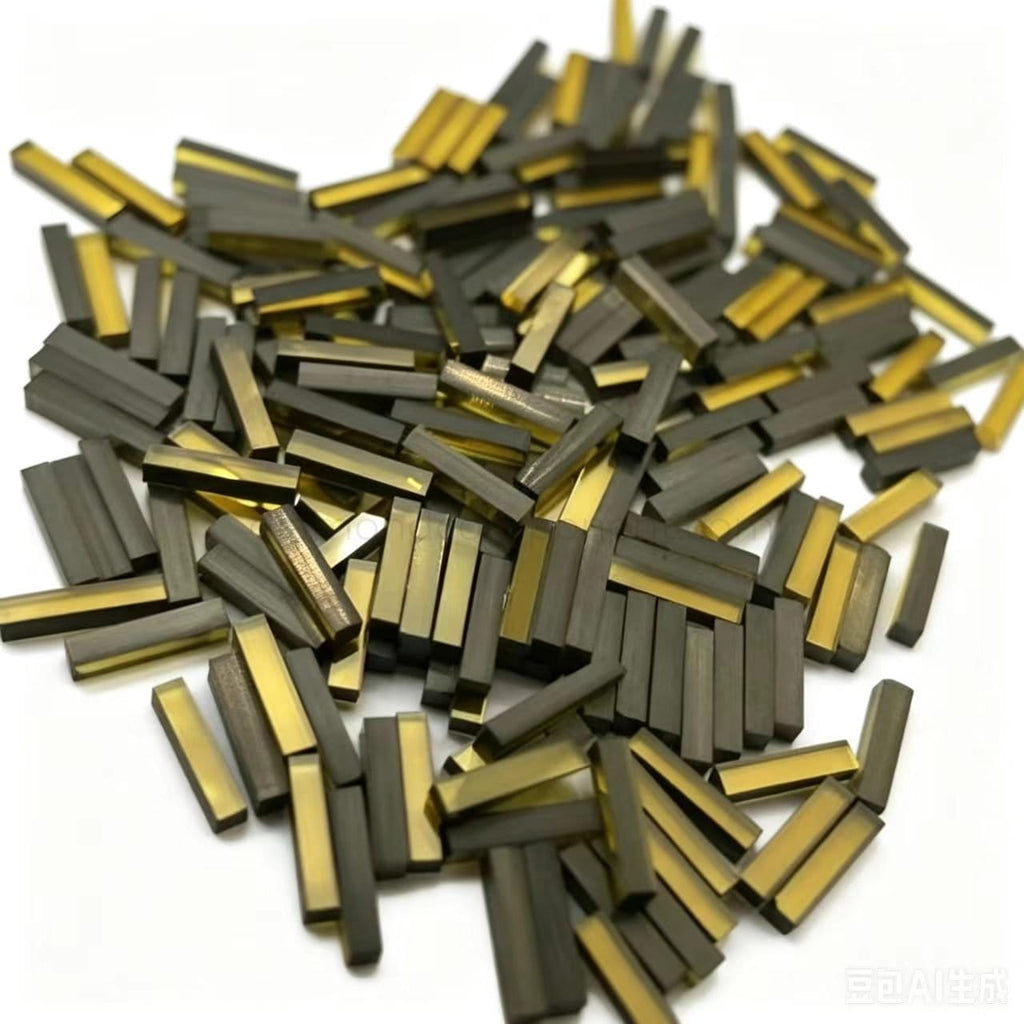

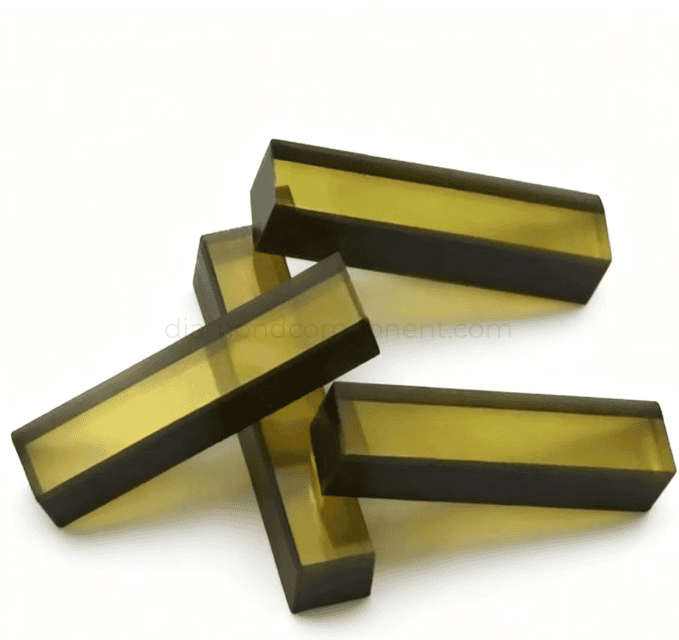

MCD Diamond Stick Blanks for Grinding Wheel Dressing Tools
MCD diamond stick blanks manufactured from HPHT monocrystalline diamond for grinding wheel dressing applications.
These square-section diamond blanks are commonly used for manufacturing single-point dressers, dressing inserts, dressing blades and custom wheel conditioning tools. The single crystal structure provides excellent wear resistance and allows the dressing edge to maintain stable geometry during service.
Standard sizes are available from stock, with custom dimensions and inspection services available upon request.
Specifications
| Item | Description |
|---|---|
| Material | HPHT Monocrystalline Diamond (MCD) |
| Product Type | Diamond Stick Blank |
| Cross Section | Square |
| Standard Lengths | 3 mm, 4 mm, 5 mm |
| Standard Sections | 0.4 × 0.4 mm, 0.6 × 0.6 mm, 0.8 × 0.8 mm |
| Surface Condition | Two Polished Faces + Two As-Cut Faces |
| Edge Condition | Laser Cut |
| Supply Mode | In Stock and Custom Production |
| Custom Manufacturing | Available |
Why Use MCD for Dressing Tools?
Grinding wheel dressing tools operate under severe abrasive conditions and require materials with exceptional hardness and wear resistance.
Monocrystalline diamond provides a continuous crystal structure without grain boundaries, allowing the working edge to maintain consistent geometry during dressing operations. This helps improve wheel profile accuracy and dressing consistency over extended service life.
For many precision dressing applications, MCD remains one of the preferred materials for producing high-quality dressing tools.
Typical Applications
MCD diamond stick blanks are commonly used for manufacturing:
Single-point diamond dressers
Multi-point dressing tools
Grinding wheel dresser inserts
Dressing blade assemblies
Form dressing tools
Wheel conditioning tools
Profile dressing tools
Custom diamond dressing components
Available Size Range
Standard stock sizes include:
| Length (mm) | Cross Section (mm) |
|---|---|
| 3 | 0.4 × 0.4 / 0.6 × 0.6 / 0.8 × 0.8 |
| 4 | 0.4 × 0.4 / 0.6 × 0.6 / 0.8 × 0.8 |
| 5 | 0.8 × 0.8 |
Additional dimensions can be manufactured according to customer requirements.
Surface Condition
Standard blanks are supplied with two polished faces and two as-cut faces.
Custom Manufacturing
Custom services may include:
Special lengths
Custom cross sections
Batch production
Dimensional inspection
Lot selection
Application-specific sorting
Stock photos and inspection information can be provided before shipment when required.
Ordering Information
For quotation, please provide:
Required dimensions
Quantity
Dressing tool type
Drawing or technical specification, if available
Providing application details helps determine the most suitable blank size and material configuration.
Note
This product is supplied as a diamond blank for tool manufacturing. Additional processing, brazing, mounting or finishing operations are normally required before the material can be used as a complete dressing tool.
